# EE-281
# Capacitors - Inductors

## Ozan Keysan

[ozan.keysan.me](http://ozan.keysan.me)

Office: C-113 <span class="meta">•</span> Tel: 210 7586

---
# Capacitors

![](http://www.mds975.co.uk/Images/radios/capacitors01.jpg)

---
#Capacitors

### A capacitor is a device that consists of two conducting plates seperated by an insulator layer.

---
# Capacitance

## Capacitance is the ratio of electric charge to voltage.

# \\(C = \dfrac{Q}{V}\\)
---
# Capacitance

## can be defined using the material properties.

# \\(C = \dfrac{\varepsilon A}{d}\\)
--

## \\(\varepsilon\\): permitivity of the dielectric material
## \\(A\\) is the surface area
## \\(d\\) is the distance between layers.

---
# Capacitor Voltage & Current

# \\(i = C\dfrac{dV}{dt}\\)
--

# \\(V = \dfrac{1}{C} \int_0^t i(t) dt\\)

---

# Energy stored in a capacitor is:

# \\(w = \dfrac{1}{2} C V^2\\)

---
# DC Response

# \\(i = C\frac{dV}{dt}\\)
--

- ## Current of capacitor is zero if there's no change in the voltage (i.e. DC voltage)
--

- ## Capacitor voltage cannot be change instantenously as this means infinite current.

---

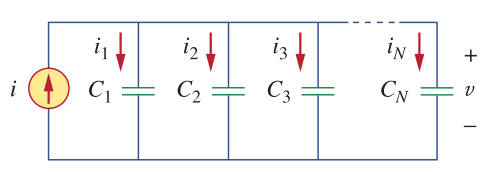

## Parallel Capacitors

![](https://raw.githubusercontent.com/ozank/ee281/master/images/parallel_capacitor.png)
--

## \\(C_{eq} = C_1 + C_2 + C_3 ... + C_N\\)
---
# Series Capacitors
![](https://raw.githubusercontent.com/ozank/ee281/master/images/series_capacitors.png)
--

## \\(\frac{1}{C\_{eq}} = \frac{1}{C_1} + \frac{1}{C_2} + \frac{1}{C_3} ... \frac{1}{C_N}\\)

---
# Series Capacitors
![](https://raw.githubusercontent.com/ozank/ee281/master/images/series_capacitors.png)

### For two capacitors
## \\(C_{eq} = \frac{C_1 C_2}{C_1 + C_2}\\)
---

#Exercise
### What is the equivalent capacitance?

![](https://raw.githubusercontent.com/ozank/ee281/master/images/Ceq_ex.png)
---
#Exercise
### Find the energy stored in the capacitors?

![](https://raw.githubusercontent.com/ozank/ee281/master/images/Cdc_ex.png)

---
# Inductors
![](http://www.coilws.com/images/Inductors%20Group.jpg)

---
# Inductance
# \\(L = \dfrac{N^2 \mu A}{l}\\)

### \\(N\\) is the number of turns, \\(\mu\\) is the permeability of the core, \\(A\\) is the cross-section area, \\(l\\) is the mean length of the magnetic flux.
---
# Inductors

# \\(V = L \dfrac{di}{dt}\\)
--

## \\(I = \dfrac{1}{L} \int_0^t V(t) dt\\)

---
## Energy stored in an inductor is:

# \\(w = \dfrac{1}{2} L I^2\\)

---
#DC Response
--

## - An inductor behaves like short-circuit under DC
--

## - Inductor current cannot be change instantenously as this means infinite voltage.

---
# Series Connection

Equivalent inductance of series connected inductors are the sum of inductances:

![](https://raw.githubusercontent.com/ozank/ee281/master/images/series_inductors.png)

## \\(L_{eq} = L_1 + L_2 + L_3 ... + L_N\\)

---

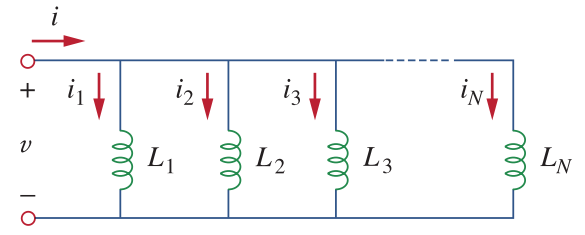

# Parallel Connection

![](https://raw.githubusercontent.com/ozank/ee281/master/images/parallel_inductor.png)

## \\(\frac{1}{L\_{eq}} = \frac{1}{L_1} + \frac{1}{L_2} + \frac{1}{L_3} ... \frac{1}{L_N}\\)

---
# Exercise:

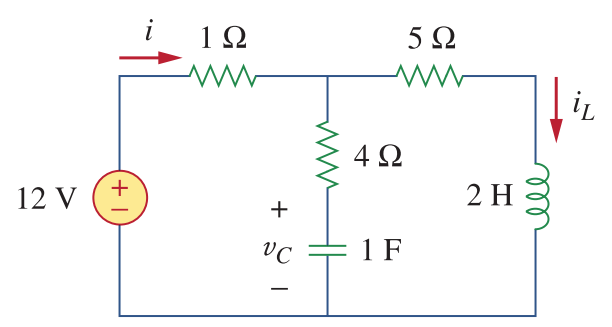

##Find the energy stored in capacitor and inductor under DC conditions.

![](https://raw.githubusercontent.com/ozank/ee281/master/images/Ldc_ex.png)

---
# Any questions?

## You can download this presentation from: [keysan.me/ee281](http://keysan.me/ee281)
